Article |
Unit |

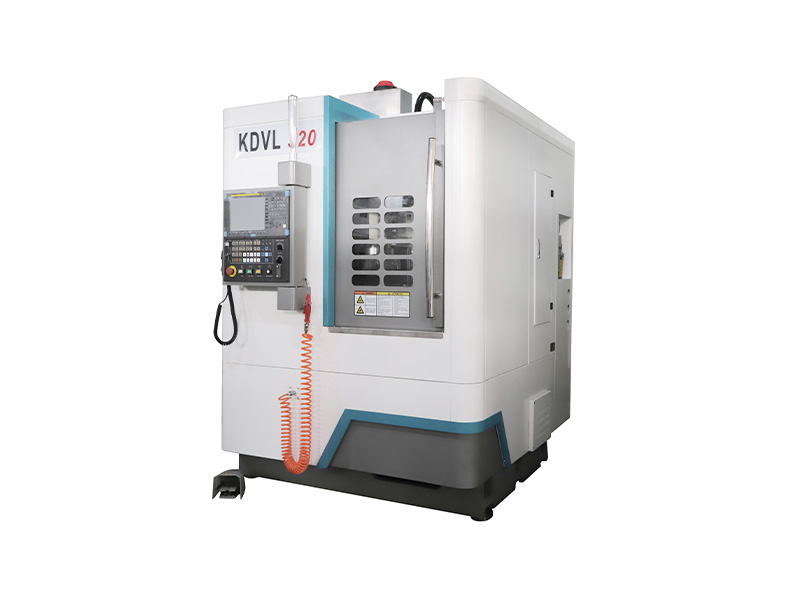

KDVL320 |
KDVL320H |
|
Processing |
|
|
|
|
Maximum cutting diameter for disc parts |
mm |
Ø320 |
Ø250 |
|
Maximum cutting diameter for shaft parts |
mm |
Ø320 |
Ø250 |
|
Maximum cutting height |
mm |
420 |
400 |
|
Spindle |
|
|
|
|
Spindle nose |
mm |
A₂-6 |
A₂-6 |
|
Ø inside of the front spindle bearing |
mm |
Ø100 |
Ø100 |
|
Spindle speed range |
rpm |
100-2800 |
100-2800 |
|
Spindle speed steps |
|
continuous |
continuous |
|
Ø of the chuck |
inch |
10 |
10 |
|
Tour |
|
|
|
|
X axis travel |
mm |
-50;+170 |
-100;+170 |
|
Z axis travel |
mm |
450 |
450 |
|
Food |
|
|
|
|
Rapid feed for the X axis |
m/min |
20 |
20 |
|
Fast feed for Z axis |
m/min |
20 |
20 |
|
Tower |
|
|
|
|
Tool holder type |
|
Hydraulic |
Live tool |
|
Tool holder stations |
pzs |
8 |
12 |
|
Tool Shank Size (Square) |
mm |
25×25 |
20×20 |
|
Tool Shank Size (Round) |
mm |
Ø32 |
Ø32 |
|
Others |
|
|
|
Main engine power |
kw |
7.5/11 |
7.5/11 |
|
Live Tool Servo Motor Power |
kw |
|
2.2/3.7 |
|
Hydraulic motor |
kw |
1.5 |
1.5 |
|
Coolant pump motor |
w |
200 |
200 |
|
Overall dimensions (L×W×H) |
mm |
1700×2400×2360 |
1700×2400×2360 |
|
Net weight |
kg |
3500 |
3500 |
The specifications, text descriptions, confiqurations, pictures, colors, etc. given herein are subject to alternation without notice and thus wthout any obligation.
